On deploying Ceph

I deployed Ceph recently since I’ve been working with it for a while but as things go sometimes we don’t master every tool we encounter. I find Ceph concepts fascinating, by design the way it recovers from failure or just how CephFS abstracts so much.

So I finally read a book I got on it from a previous manager, shoutout Francis hope you’re well, called Mastering Ceph - Second edition there’s also a git repo but it’s getting old and I wanted to work on the latest and greatest. The book is still fine to learn the basic concepts (though I’m like half done really)

This is in no way a production setup, it would need very fast networking (10Gib+) and dedicated SSDs, this is really just playing around with the tech to understand it better

I chose Vagrant and Ansible because I’m already working with rook and k8s all day so I wanted a different setup I felt I could break. There’s some handguiding in rook I wanted to avoid to explore.

Prerequisites

1. You will need some compute, in my case my personal PC is strong enough to handle the vms
2. You will need storage, I use my Unraid setup mounted as nfs
3. Vagrant
4. Ansible
5. A bit of patience :)

Setup

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17

# Clone my setup repo

git clone https://github.com/duchaineo1/vagrant-ceph.git
cd vagrant-ceph

# Adjust the keyfilepath inside the Vagrantfile, right now it's using my key path

ssh-keygen -t ed25519 -C "Key for ceph" -N "" -f ceph-key
pwd && ls

# Run vagrant up, this can take a while

vagrant up

# If all the vm come up run the ansible playbook to provision Ceph

ansible-playbook playbook.yml -i inv.ini

Make sure the networking is not overlapping with yours, the default cidr is 192.168.56.0/24, it can be changed in the defaults of the ansible role

Exploration

Let’s login onto our ceph-mon and validate our current state + fetch the default admin password so we can login on the dashboard.

1
2
3
4
5
6

ssh -i $YOUR_PRIVATE_KEY_PATH [email protected]
sudo su
# Lets check our current state, it's possible you're having some basic alerts, I often get speed alerts since it's all through nfs

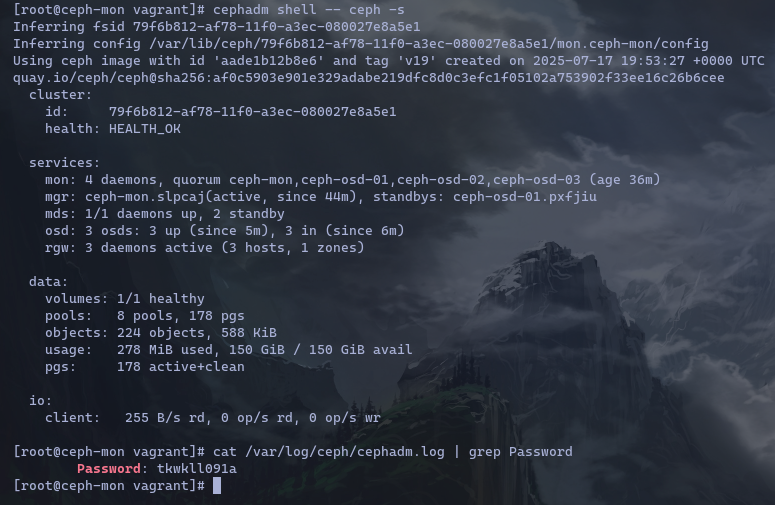

cephadm shell -- ceph -s
# Get that default password
cat /var/log/ceph/cephadm.log | grep Password

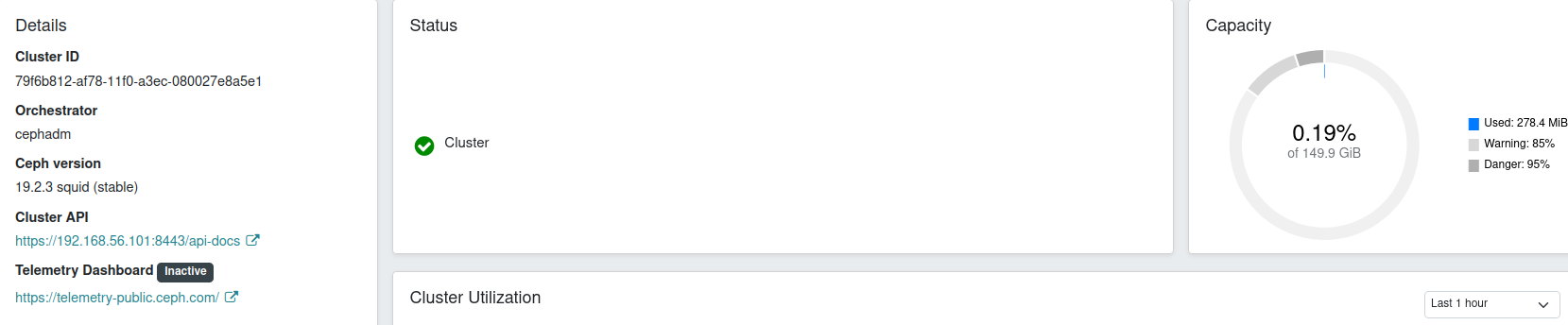

Using your favorite browser go to https://192.168.56.101:8443 and go through the login process

If all is well you’re logged in and the cluster is in a mostly healthy state!

Next posts I’ll explore it more and show some of the feature like compression and how PGs are moved around when OSDs are added
